TPMS

Ultimate TPMS solution with CMS Z-sensors

CMS offers a programmable TPMS solution that features the smallest and lightest sensor available for the global aftermarket. As a result of the best-in-class lifetime performance, the Z-sensors developed by the Zylux Group are the ultimate TPMS service solution.

Why CMS Z-Sensors from Zylux?
Zylux has more than 25 years of experience in the design and development of TPMS sensor development. The Z-sensors are equipped with the latest Mirocontollers and are manufactured to OE quality standards. They are unrivalled in terms of compatibility and support all current car localisation technologies such as WAL, PAL, LOS, SAL, WASP and are leading in vehicle coverage. The comprehensive coverage extends to almost all vehicles with direct TPMS and covers 99% of the market in Europe, USA, Canada, Australia and New Zealand.

Your benefits
- Over 25 years of experience in TPMS sensor development
- 100% compatibility with all current ATEQ programming systems
- Coverage of 99% of all vehicles in Europe
- Lightning-fast programming configuration in < 5 sec.
- Multiprogramming function for up to 12 sensors simultaneously
- Ultra-lightweight, with a total weight of only 23 grams ++ Less balancing weights and better concentricity properties
- Produced in OEM quality according to ISO21750

Durable, lightweight and powerful – CMS Z-sensors

CMS Z-sensors are characterised by a long service life of 5 to 6 years – corresponding to the average service life of a standard tyre, driving and usage profile.
Despite their robustness, they are among the lightest TPMS sensors on the market, offering an optimal combination of durability and efficiency.

The maximum permissible speeds depending on the valve type at a glance:
• Z-Sensor 2.0 Snap-In (rubber): up to 220 km/h
• Z-Sensor 2.0 Clamp-In (metal): up to 320 km/h
• BLE sensor: up to 320 km/h
These values underline the high quality and performance of Zylux technology – even under demanding operating conditions.

Plug & Drive

Plug & Drive

Already 20% of vehicles on the EU market are factory-programmed with our Z-sensors, meaning they are ready for immediate use without any additional programming.
Install, drive off – plug and drive. The sensors activate automatically in the vehicle.
For maximum flexibility, each Z-sensor is also fully free programmable. This makes our sensors the ideal solution for workshops: fast, compatible and virtually universal in application.

Link to PDF

SENSORS

Universal

Our Z-sensors are equipped with state-of-the-art microcontroller technology. They impress with their exceptionally high programming speed, optimised LF programming functionality and unrivalled compatibility with other ATEQ tools used in most TPMS workshops.
Thanks to their broad vehicle coverage, they support almost all vehicles with direct TPMS – covering over 99% of the market in Europe, the USA, Canada, Australia and New Zealand.
This means activation in less than 5 seconds – done!

A list of vehicle coverage can be found here:
Link to PDF

Another highlight: the integrated multiprogramming function allows up to 12 sensors to be programmed simultaneously, which saves time and effort, especially in everyday workshop use.

SENSORS

Ultimate solution as a result of original spare part sensors

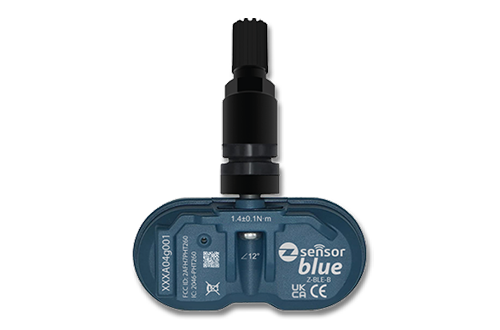

CMS Z-Sensor Blue

Specially developed for Tesla vehicles, this revolutionary OE BLE (Bluetooth Low Energy) replacement sensor offers a direct replacement for the original sensor. Thanks to the seamless installation process, no programming is required. The existing TMPS sensors are simply replaced as a result of the new sensor and the vehicle is ready to go!
Our Z-Sensor Blue comes pre-programmed for Tesla Model 3, S, X and Y, so it is perfectly compatible with the vehicle without complicated set-up procedures. The Z-Sensor Blue not only provides accurate and reliable tyre pressure monitoring but also adds a touch of style to the Tesla. Our sleek aluminium clamp-in design blends seamlessly into the vehicle and enhances its appeal. Don't compromise on safety and performance - choose the Z-Sensor Blue and take your driving experience to the next level. The maximum speed of the BLE sensor is 320 km/h.

ATEQ is the leading manufacturer of TPMS diagnostic tools for the automotive and commercial vehicle aftermarket, QEMs and assembly line customers worldwide. Since the launch of TPMS tools, the ATEQ development team has continuously improved and refined the tools. The software is updated every two months. This eliminates the need to purchase additional tools, hardware or accessories. To keep pace with the fast-moving TPMS market and get the latest features, customers can simply update their TPMS tool.

TOOLS

Programming tool Z41

The Z41 is an a ordable TPMS programming tool packed with essential features and functions. Designed with mid-sized tire shops in mind, its color interface guides the user when replacing and servicing TPMS sensors. With the addition of the optional OBD2 module, users can reset the TPMS system on those cars that require an OBD2 relearn. It is frequently updated with new features and up-to-date vehicle and sensor coverage.

Z41 Features
• Easy to operate with icon interface and bright color display
• Activates and reads TPMS sensors of all light vehicle brands globally
• Displays all sensor data in seconds: ID, tire pressure, tire temperature, battery status, etc.
• Provides indirect, manual and auto relearn procedure information
• Selects vehicles via make, model, year look-up
• Provides TPMS sensor part numbers
• Checks Remote Keyless Entry signal
• Frequent database updates via PC desktop software

TOOLS

Programming tool Z47

The Z47 programming tool o ers functionality and exibility at an a ordable price. Designed with dealerships in mind, its simple and easy-to-use interface guides the user when replacing and servicing TPMS sensors. With the addition of the OBDII Quick Connector, users can reset the ECU in less than 2 minutes. Live WiFi Updating allows the Z47 to always be up-to-date with new features and current vehicle and sensor coverage.

Z47 features
• 100% coverage for Domestic, European, and Asian vehicles
• Comprehensive make, model, year speci c relearn procedures
• Programs all leading aftermarket programmable sensors
• TPMS reset via OBD2 on more than 90% of car models
• WiFi & real time updates, powered by Live Sensor™
• TPMS sensor part number look-up (OE and aftermarket)
• Change placard values when swapping tire sizes
• ECU unlocking for Toyota family of vehicles

TOOLS

Programming tool Z57

Introducing the all-new Z57 with a brand new touchscreen interface, 100% OEM sensor tread depth capturing, “Sync-ID” OBD technology and much more. Constant Live Sensor updates and the ability to connect Wi-Fi to ensure that the Z57 has the latest coverage available.

Z57 features
• All-new updated user interface
• Touch-screen capability
• Comprehensive make, model, year speci c relearn procedures
• Programs all leading aftermarket programmable sensors
• WiFi & real time updates, powered by Live Sensor™
• TPMS reset via OBD2 on more than 90% of car models
• Retrieve/Clear TPMS DTC codes
• DOT Recording
• TPMS sensor part number look-up (OE and aftermarket)
• ECU unlocking for Toyota family of vehicles
• Tire Tread Depth functionality (Accessory Sold Separately)

TOOLS

Programming tool Z67

With interactive menus, complete TPMS diagnostic capability, and even built-in support, the Z67 will completely re-imagine the way technicians diagnose and validate TPMS systems. The tool boasts over 30 features and functions, as well as a built-in camera to document any vehicle issues, which can then be added to a complete TPMS report and emailed to the customer.

Z67 features
• Secure Gateway (SGW) ready for Stellantis vehicles
• Save, manage, and edit customer jobs and reports on the cloud
• 100% coverage for Domestic, European, and Asian vehicles
• Program & clone 20+ aftermarket sensor brands
• Record DOT information
• WiFi & real time updates, powered by Live Sensor™
• Export & send complete customer reports via email
• TPMS sensor and service kit image library for easy reference
• ID Match functionality to troubleshoot and repair TPM systems
• Tire Management: tread reading, wheel inspection, tire registration
• VIN Scan for vehicle selection
• Read & clear TPMS DTC codes
• Change placard values when swapping tire sizes
• Built-in HD camera for accurate vehicle and wheel inspection
• Complete how-to guides and training videos built-in the tool
• Email tech support directly from the tool

Replacement and maintenance of TPMS valves and service kits

TPMS sensors are among the safety-related components of a vehicle. They are constantly exposed to weather and driving conditions and must therefore be replaced regularly.
In order to ensure the functionality of the system and maximum safety on the road, CMS and Zylux recommend – in accordance with the recommendations of the German Tyre Retail and Vulcanisation Trade Association (BRV) – that all relevant components be replaced when changing tyres.
This ensures that the system continues to function reliably in the long term and complies with legal requirements.

The required sensors or service kits can be selected in various colours in the configurator or ordered directly from the shop.

Teaching procedures
The various teaching procedures (OBDII, self-teaching, manual teaching) are documented in writing on each ATEQ tool.

TPMS app
Zylux invests in the trust of its customers: thanks to the forward-looking architecture of the Z sensors, Zylux has developed an app that provides immediate solutions to programming or update errors. CMS Z-sensors support over-the-air (OTA) updates with a proprietary solution. This unique feature allows CMS Z-sensor users to easily update existing sensors on site without delay or unnecessary costs, without having to replace them.
You can find the app in the iOS App Store or Android Google Play Store under the name: ‘Update TPMS’, developed by Neosens GmbH.
